Genuine VOLVO control rods, ball joints and bushings
The various bushings in the front suspension make up one integral system. If one bushing is replaced, it is important for the new unit to have the same characteristics as the one it replaces, that is to say the same damping and spring characteristics and the same temperature characteristics.
Worn bushings and bushings with differing material characteristics can result in marked vibrations, noise and abnormal wear on various front suspension components.

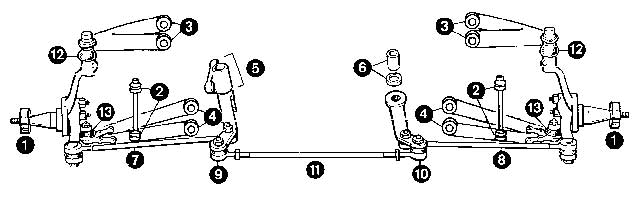

| Pos. | Part Number | Description | Quantity |
|---|---|---|---|
| 1 | 273160 | Front wheel bearing kit Lagersatz für Vorderrad |
|
| 2 | 83125 | Rubber bushing, stabilizer | 8 |
| 3 | 87033 | Rubber bushing, upper whisbone 180, 182, 183 | 4 |
| 4 | 663675 | Rubber bushing, lower whisbone | 4 |
| 5 | 276521 | Rebushing kit, ch 3323–15.499 | |
| 5 | 671444 | Rebushing kit ch 1966– | |
| 6 | 54929 | Rebushing kit | |
| 7 | 658597 | Steering rod, right | 1 |
| 8 | 658596 | Steering rod, left | 1 |
| 9 | 658432 | End, right thread | 1 |
| 10 | 658431 | End, left thread | 1 |
| 11 | 660979 | Tie rod | 1 |
| 12 | 273004 | Ball joint kit, upper, ch –16.499 | 2 |
| 12 | 273030 | Ball joint kit, upper, ch 16.500– Kugelgelenksatz, oben |
2 |
| 13 | 273038 | Ball joint kit, lower Kugelgelenksatz, unten |
2 |
| Source | Front end parts –1987, VOLVO 326 1174 1.97 Parts catalogue P180 (B18) Parts cataloge 182 183 (B20) |
||
